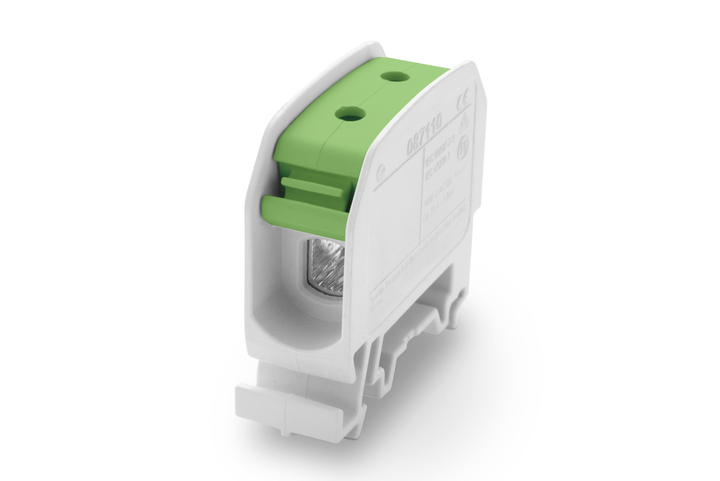

Terminal block RKA 1p 16mm² Cu+Al green
Internal Reference: 087110-2-3
I(max) :
1000Vac/dc 76A Cu/62A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 16mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
1000Vac/dc 76A Cu/62A Al
additional measurement terminal integrated by default
IP20
halogen-free, self-extinguishing
captive screws with constant tightening torque
can be coupled with RKA 16mm² terminals
mounting on DIN rail or by screws
earth terminal color according to standard IEC60947-7-1
with profile for marking
for Cu and Al conductors
| I(n): 76 A |
| Input section: 16 mm² |
| Output section: 16 mm² |
| Color: vert |
| Number of connections 16 mm²: 2 |
