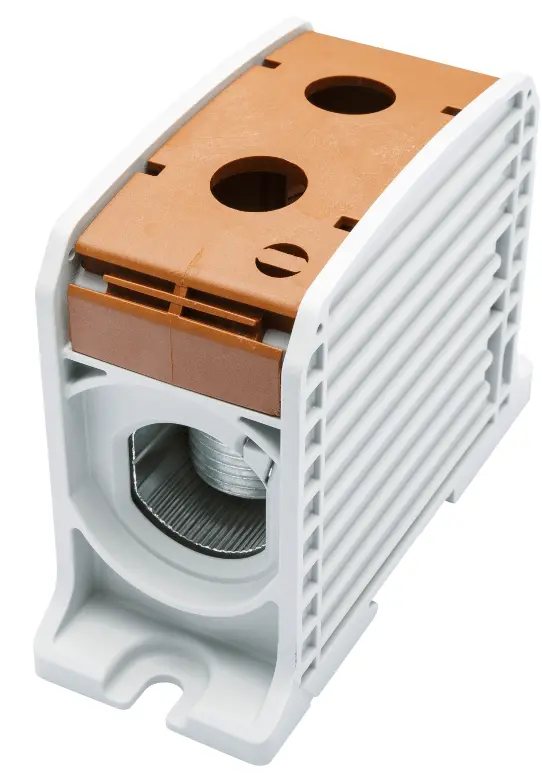

Borne de racc. RKA 1p 300mm² Cu+Al brune

Internal Reference: 087910-3-3

I(max) :
1000Vac/dc 520A Cu
600V 420A Cu/340A Al

additional measuring terminal integrated by default

IP20

halogen-free, self-extinguishing

captive screws with constant tightening torque

can be coupled with RKA 300mm² terminals

DIN rail or screw mounting

ground terminal color according to IEC60947-7-1 standard

with profile for marking

for Cu and Al conductors
