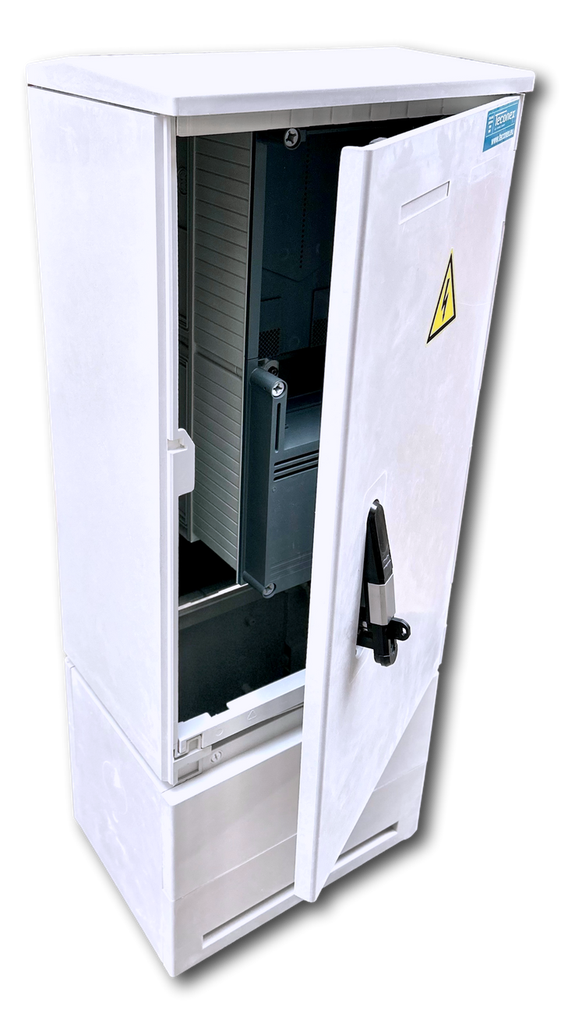

(AS) Coffret de branchement de trottoir DIN00 + socle 320mm
Internal Reference: CB.00.TP.
Connection box equipped with:
- sidewalk cabinet DIN
- mounting plate
- shortened pedestal
- connection module 25D60 with 125A disconnector
- cable glands M50 for inlet and outlet
- lock with key 2432E
- yellow triangle pictogram
IP44
- sidewalk cabinet DIN
- mounting plate
- shortened pedestal
- connection module 25D60 with 125A disconnector
- cable glands M50 for inlet and outlet
- lock with key 2432E
- yellow triangle pictogram
IP44
| Depth: 330 mm |
| Height: 830 mm |
| Width: 460 mm |
| Counting module: 1 |
