Junction box 328x239x129 without cable gland
Internal Reference: EX322

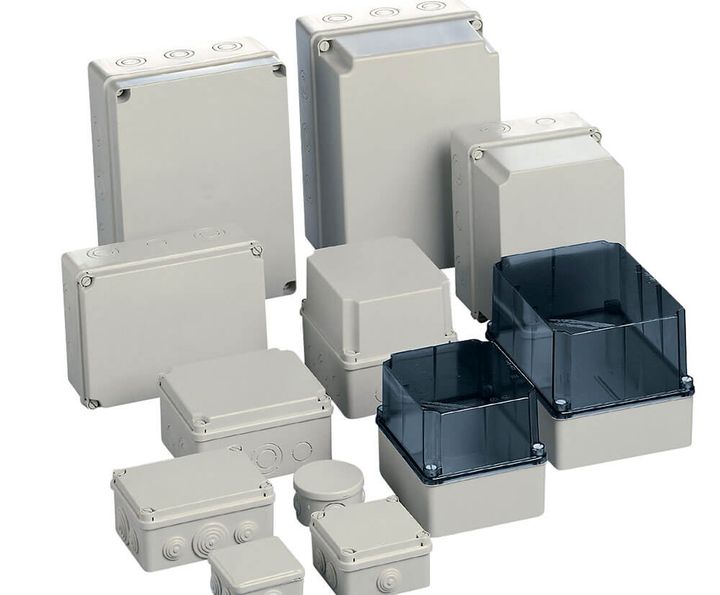

Product range:
Seven watertight junction boxes.
Three watertight motor-protection boxes.
Each of these models is manufactured in three different versions: with conical cable glands, with knock-out sides and with plain sides.
The three largest models are available with opaque or transparent cover.
Materials:
Halogen-free plastic materials.
Opaque base and cover: Shock-proof PS RAL 7035.
Transparent cover: PC tinted window, with UV protection.
Conical cable glands: PVC.
Supply:
The boxes are supplied individually, shrink-wrapped and in multiple cardboard packaging, according to minimum packaging units.
Boxes with conical cable glands are supplied with the cone assembled.
Seven watertight junction boxes.
Three watertight motor-protection boxes.
Each of these models is manufactured in three different versions: with conical cable glands, with knock-out sides and with plain sides.
The three largest models are available with opaque or transparent cover.
Materials:
Halogen-free plastic materials.
Opaque base and cover: Shock-proof PS RAL 7035.
Transparent cover: PC tinted window, with UV protection.
Conical cable glands: PVC.
Supply:
The boxes are supplied individually, shrink-wrapped and in multiple cardboard packaging, according to minimum packaging units.
Boxes with conical cable glands are supplied with the cone assembled.
| Depth: 132 mm |
| Height: 243 mm |
| Length: 333 mm |
| Color: RAL7035 |
| Packaging: 1/6 |
| Entries: 12xM25/40 |
| IP: 67 |
| Shock resistance IK: 07 |
