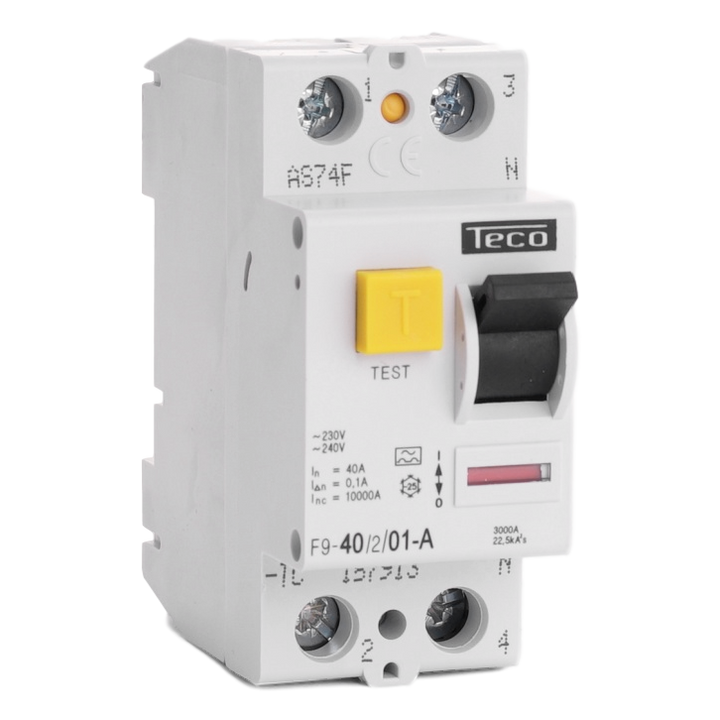

Residual current circuit breaker TC 2P 40A 100mA type A
Internal Reference: F940201A
Limited resistance to transient overloads 250A 8/20μs.
Protected against unintended tripping.
Complies with the standard
NBN EN 61008-1-1 based on EN 61008-1:2004 + A11:2007 and
NBN IN 61008-2-1:1994 + A1:1998
Conforms to thermal requirement 3kA 22.5kA²s.
Protected against unintended tripping.
Complies with the standard
NBN EN 61008-1-1 based on EN 61008-1:2004 + A11:2007 and
NBN IN 61008-2-1:1994 + A1:1998
Conforms to thermal requirement 3kA 22.5kA²s.
| I(diff): 100 mA |
| I(n): 40 A |
| U(n): 240 V |
| Modules: 2 |
| Poles: 2 |
| Type: A |
| Code: 157913 |
| Rated switching capacity (EN 61008): 10 kA |
