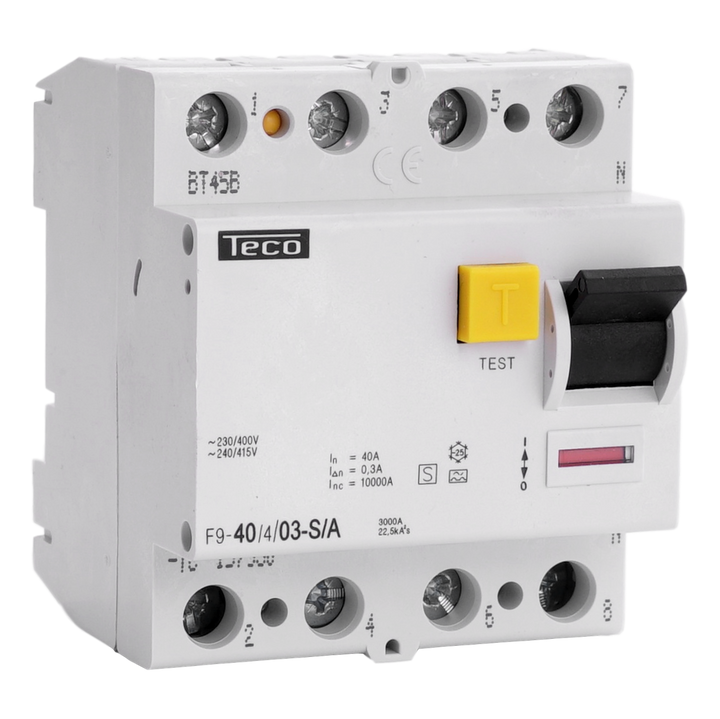

Residual current circuit breaker Teco 4P 40A 300mA type S-A
Internal Reference: F940403SA
Limited resistance to transient overloads 5kA 8/20µs.
Conforms to
NBN EN 61008-1-1 based on EN 61008-1:2004 + A11:2007 and
NBN EN 61008-2-1:1994 + A1:1998.
Conforms to thermal requirement 3kA 22.5kA²s.
Conforms to
NBN EN 61008-1-1 based on EN 61008-1:2004 + A11:2007 and
NBN EN 61008-2-1:1994 + A1:1998.
Conforms to thermal requirement 3kA 22.5kA²s.
| I(diff): 300 mA |
| I(n): 40 A |
| Modules: 4 |
| Poles: 4 |
| Type: A |
| Code: 157930 |
| Rated switching capacity (EN 61008): 10 kA |
| Selective: Oui |
