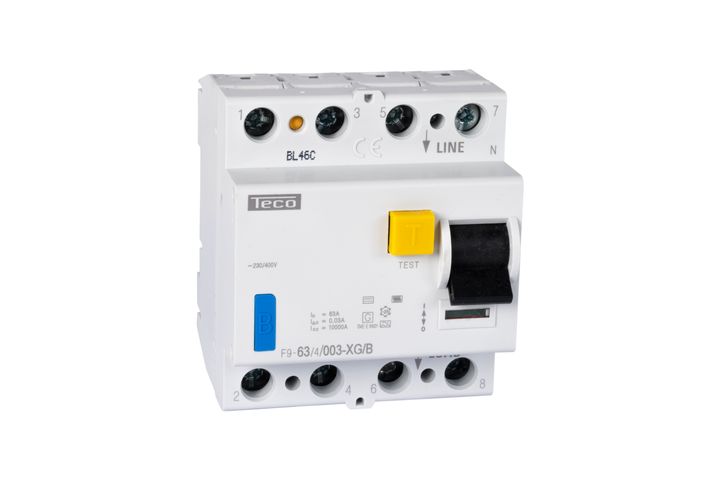

Residual current circuit breaker TC 4P 63A 30mA Type B - without LED
Internal Reference: F9634003XGB
Limited resistance to transient overloads 3kA 8/20µs.
Conforms to
NBN EN 61008-1 based on EN 61008-1:2012 and
NBN EN 61008-2-1 based on EN 61008-2-1:1994 + A11:1998 and
NBN EN 62423:2013
Conforms to thermal requirement 3kA 22.5kA²s.
Electrical insulation: > 4mm between contacts.
(!) Attention: always connect the power supply (arrival) at the top (see also manual).
Conforms to
NBN EN 61008-1 based on EN 61008-1:2012 and
NBN EN 61008-2-1 based on EN 61008-2-1:1994 + A11:1998 and
NBN EN 62423:2013
Conforms to thermal requirement 3kA 22.5kA²s.
Electrical insulation: > 4mm between contacts.
(!) Attention: always connect the power supply (arrival) at the top (see also manual).
| I(diff): 30 mA |
| I(n): 63 A |
| U(n): 400 V |
| Modules: 4 |
| Poles: 4 |
| Type: B |
| Code: 500842 |
| Rated switching capacity (EN 61008): 10 kA |
