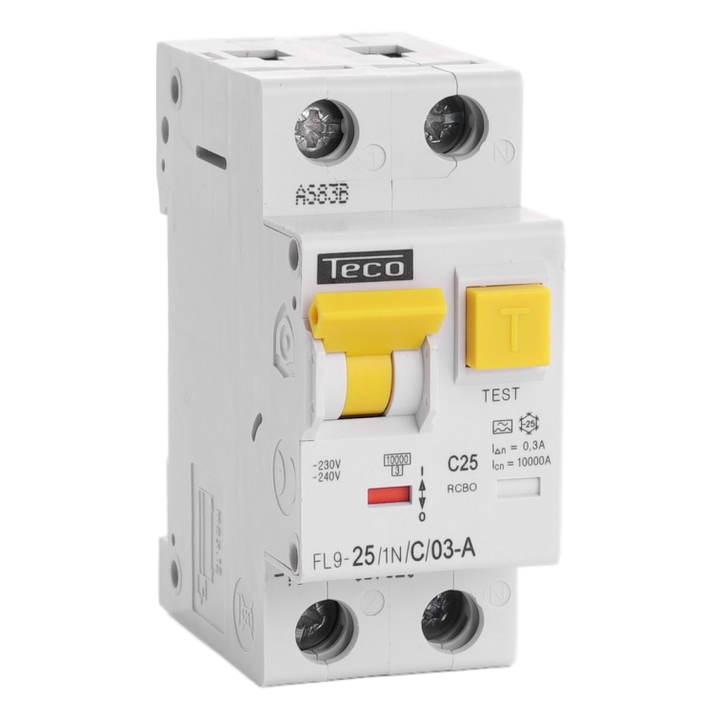

RCBO Teco 1N 25A Curve C Type A 300mA
Internal Reference: FL9251NC03A
Limited resistance to transient overloads 250A 8/20µs.
Conforms to
NBN EN 61009-1 based on EN 61009-1:2012 + A11:2015 + A1:2014 + A2:2014 + A12:2016 and
NBN EN 61008-2-1 based on EN 61009-2-1:1994 + A11:1998.
Conforms to
NBN EN 61009-1 based on EN 61009-1:2012 + A11:2015 + A1:2014 + A2:2014 + A12:2016 and
NBN EN 61008-2-1 based on EN 61009-2-1:1994 + A11:1998.
| I(diff): 300 mA |
| I(n): 25 A |
| U(n): 240 V |
| Modules: 2 |
| Type: A |
| Rated switching capacity (EN 60898): 10 kA |
| Code: 157821 |

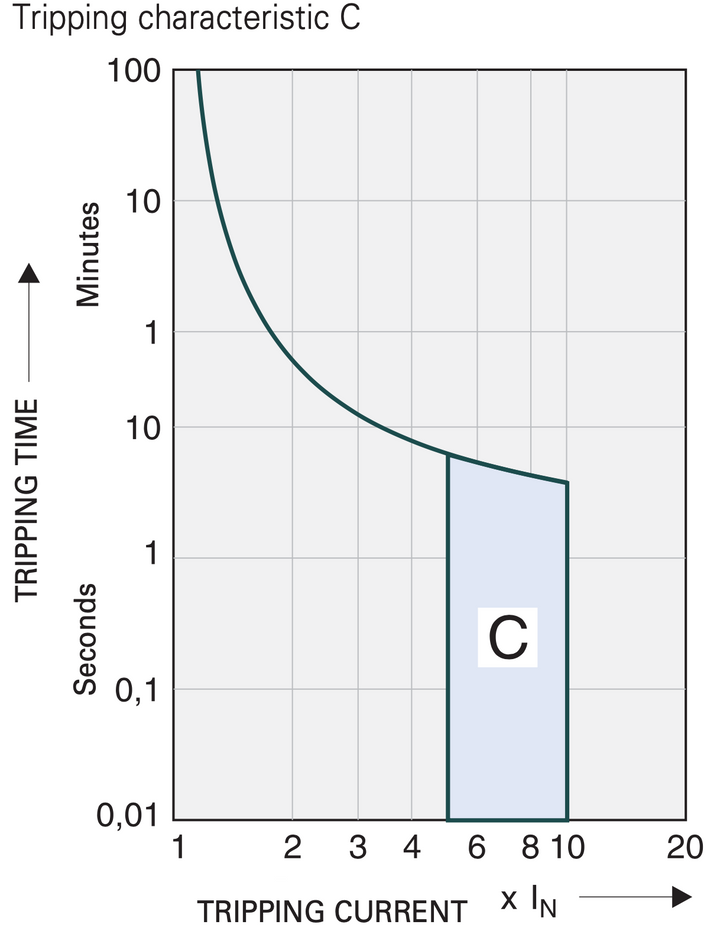

| Curve: C |
| Energy limitation class: 3 |
