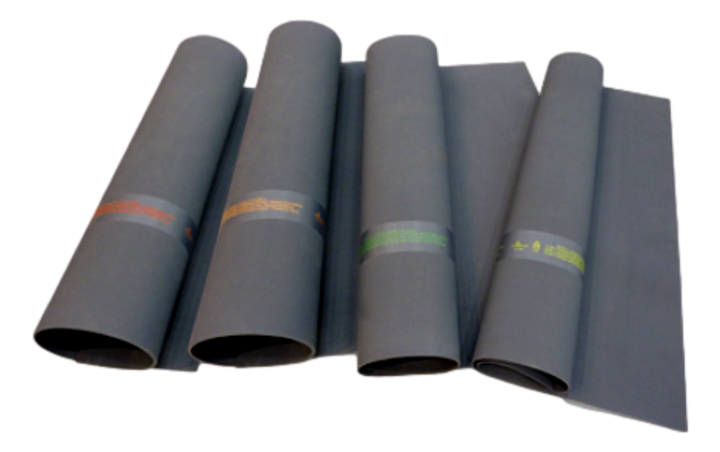

Insulating mat class 0 1,2x10m
Internal Reference: SOFAD0-12100
Rubber base: SBR natural rubber
Specific weight: 1.51 g / cm3 (specific gravitad)
Hardness: 71 Shore A
Tensile strength: 75.5 kg / cm2
Elongation at break: 362
Tear strength: 20 kg / cm2
Abrasion resistance: 182 mm3
Temperature range: -40°C / +70°C
Chemical resistance:
Diluted acids and bases - Moderate
Concentrated acids and bases - Not recommended
Hydrocarbons - Not recommended
Organic solvents - Not recommended
Complies with IEC 61111 standard
We can customize mat lengths according to customer requirements (maximum 10 m).
Specific weight: 1.51 g / cm3 (specific gravitad)
Hardness: 71 Shore A
Tensile strength: 75.5 kg / cm2
Elongation at break: 362
Tear strength: 20 kg / cm2
Abrasion resistance: 182 mm3
Temperature range: -40°C / +70°C
Chemical resistance:
Diluted acids and bases - Moderate
Concentrated acids and bases - Not recommended
Hydrocarbons - Not recommended
Organic solvents - Not recommended
Complies with IEC 61111 standard
We can customize mat lengths according to customer requirements (maximum 10 m).
| Dimension: 1,2 x 10 m mm |
| Weight: 45,6 g |
| Working voltage: 1000 |
| Thickness: 1,5 mm |
| Classe: 0 |
