Earthing equipment for HV overhead lines 12KA/1s
Internal Reference: SOFPATL-PA40/05007
Phase earthing and short-circuiting equipment for high-voltage overhead lines.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.

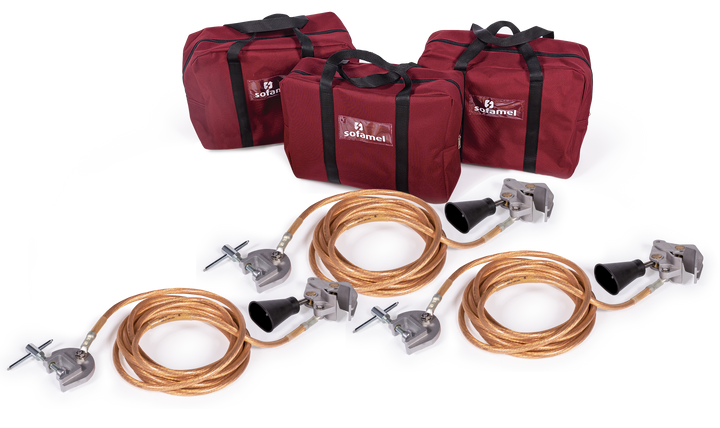

Consists of:
3 PA40-B (bayonet) aluminum alloy clamps with clamping screws for cylindrical conductors with diameters ranging from 36 to 130 mm.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.
Consists of:
3 PA40-B (bayonet) aluminum alloy clamps with clamping screws for cylindrical conductors with diameters ranging from 36 to 130 mm.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
| I(n): 12 KA/1s A |
| Length: 7 mm |
| Section: 50 mm² |
