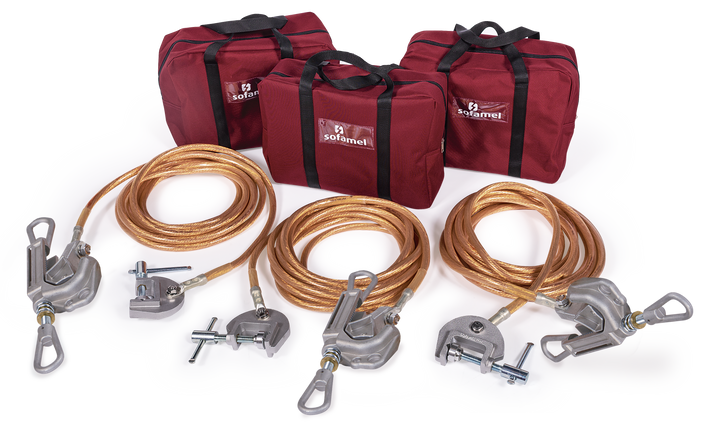

Earthing equipment for HV overhead lines 25KA/1s
Internal Reference: SOFPATL-TML/09506
Phase earthing and short-circuiting equipment for high-voltage overhead lines.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.
Consists of:
3 aluminum-alloy TML clamps with clamping screws for cylindrical conductors with diameters ranging from 10 to 70 mm.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
Its main purpose is to protect workers against accidental switching on or voltage recurrence during repair work.
Complies with IEC 61230 standard.
Consists of:
3 aluminum-alloy TML clamps with clamping screws for cylindrical conductors with diameters ranging from 10 to 70 mm.
3 copper cables with PVC insulation. Cross-section and length according to model.
3 TT-50 grounding clamps.
3 covers for transport and storage of equipment.
| I(n): 25 KA/1s A |
| Length: 6 mm |
| Section: 95 mm² |
