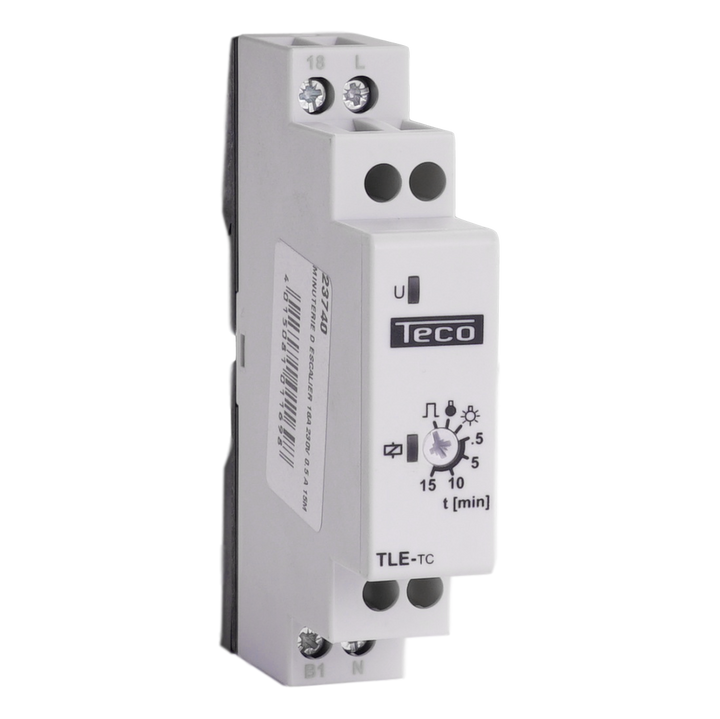

Staircase time switch Teco 230VAC 16A 1NO
Internal Reference: TLE
timer function:
After pressing the push-button, the relay contact closes and the selected time begins to count down. If the push-button is pressed again before the end of the time, the time starts running again (as per EN 60669-2-3). Multiple rapid push-button presses (pumps) add up to 2, 3 or more time intervals up to a maximum of 60 min. A long press (> 2 s) interrupts the time and the relay switches off (energy-saving function).
shutdown warning (short interruptions 15, 10 and 5 sec before the end of the timer)
adjustable time: 0.5, 5, 10 or 15 minutes
2 LED indicators (power and output)
functions:
- automatic
- off
- permanent light
- remote switch
can be used with illuminated pushbuttons
35mm rail mounting (EN60715)
After pressing the push-button, the relay contact closes and the selected time begins to count down. If the push-button is pressed again before the end of the time, the time starts running again (as per EN 60669-2-3). Multiple rapid push-button presses (pumps) add up to 2, 3 or more time intervals up to a maximum of 60 min. A long press (> 2 s) interrupts the time and the relay switches off (energy-saving function).
shutdown warning (short interruptions 15, 10 and 5 sec before the end of the timer)
adjustable time: 0.5, 5, 10 or 15 minutes
2 LED indicators (power and output)
functions:
- automatic
- off
- permanent light
- remote switch
can be used with illuminated pushbuttons
35mm rail mounting (EN60715)
| I(n): 16 A |
| U(n): 230 V |
| Modules: 1 |
| Contacts: 1 |
| Adjustment range: 30 s-15 min |
| Code: 101065 |
