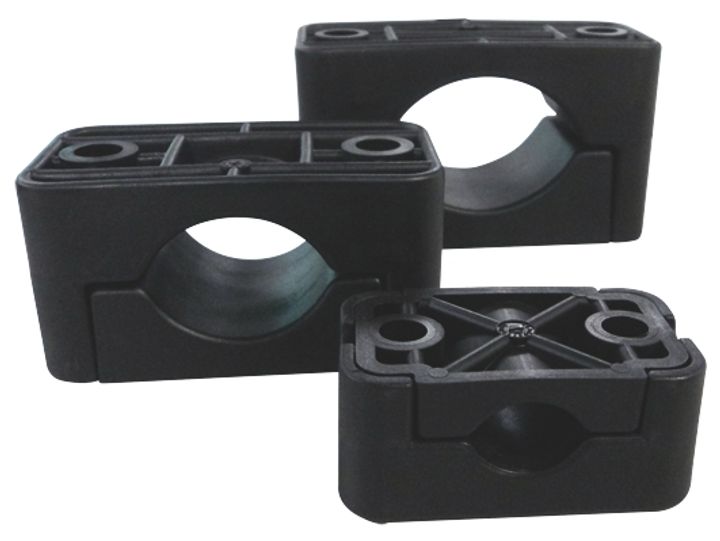

Clame-collier 1 câble 75-100 mm
Internal Reference: ST75100
suitable for fastening a single cable with one or more low-, medium- or high-voltage conductors
material: glass-fiber reinforced polyamide, bending strength 210 N/mm², tensile strength 120 N/mm².
resistant to UV rays, salt water, ozone, oils and alkalis
self-extinguishing to UL94-V-0 and DIN 5510-2:2009
coefficient of thermal expansion: +0.01%/+10°C
temperature range: -50°C to +120°C stable, +220°C peak
stainless steel fasteners suitable for almost any assembly are available on request
halogen-free
material: glass-fiber reinforced polyamide, bending strength 210 N/mm², tensile strength 120 N/mm².
resistant to UV rays, salt water, ozone, oils and alkalis
self-extinguishing to UL94-V-0 and DIN 5510-2:2009
coefficient of thermal expansion: +0.01%/+10°C
temperature range: -50°C to +120°C stable, +220°C peak
stainless steel fasteners suitable for almost any assembly are available on request
halogen-free

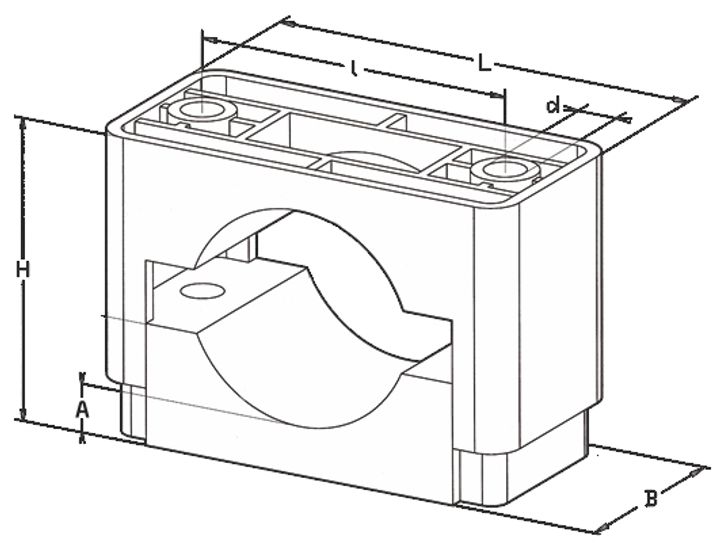

| B: 80 mm |
| D: 14.5 mm |
| Height: 110 mm |
| Cable Diameter: 75-100 mm |
