Contrôleur CASAMBI Bluetooth pour driver DALI 50-200M
CASAMBI 0/1-10V & DALI MODULE - LONG RANGE

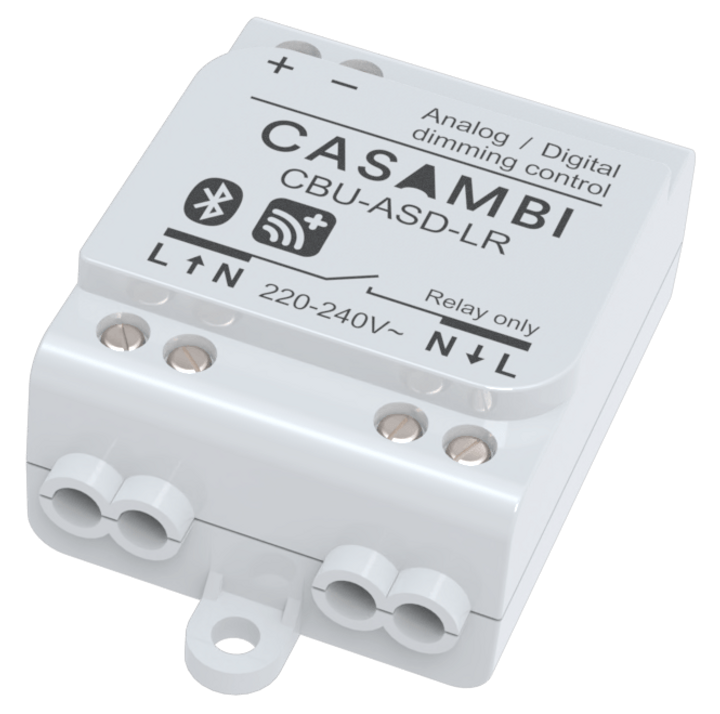

The CBU-ASD-LR is a DALI and 0/1-10V controller for a single dimmable DALI or 0/1-10V driver.
The CBU-ASD-LR can be controlled using the free Casambi app (Bluetooth), available for iOS and Android devices, as well as with traditional wall-mounted push buttons.
Various configurations are possible via the app (Bluetooth).
The module can be used as a transmitter (with a push button or sensor) or as a receiver (on the light fixture’s driver).
The module features protection against overcurrent (max 10A) and overheating.
Control range: 50M indoors; 200M outdoors.
Never power the driver directly from the module’s output without using an external 1-10V relay.
*** BEFORE PAIRING A CBU-ASD-LR MODULE WITH A NETWORK, ALWAYS CHANGE THE USAGE PROFILE: EITHER 0/1-10V OR DALI! ***
NOTE:
The Casambi CBU-ASD-LR module is not DALI 2-compatible.
This standalone module is designed for use with the Casambi ecosystem, which uses the Bluetooth protocol for wireless control, and is not intended for integration into a standard external DALI 2 network.
| Gamme: CASAMBI |
| Dimming: 0/1-10V + DALI |
